PIKO Z3 is a high-capacity autonomous mobile robot engineered for LiDAR-guided, multi-compartment logistics transport across mixed indoor-outdoor environments.
The Piko Z3 has six lockable compartments carry up to 150kg (370L total) between locations, released by RFID or password rather than a person opening each door. It navigates using 3D and 2D LiDAR, GNSS and dual depth cameras, and runs for up to 56 hours on standby from a four-hour charge - suited to moving bulk parcels and goods across warehouses, logistics hubs and large campus sites in one run instead of several trips.
Why Ultimate Robotics
The support that comes with the platform
Authorized Distributor
Full manufacturer-backed warranty coverage and dedicated product support
Hassle-Free Delivery
Complete end-to-end logistics management, including customs clearance
Single Point of Contact
All pre-sales and post-sales support handled by our dedicated team
Documentation & Resources
Full access to detailed technical guides and a comprehensive knowledge base
Product Overview
171.7 Kg
Weight
56 Hrs
Standby Time
15 (~8°)
Slope
150 Kg
Load
Powered by. YOGO
Model Features
Piko Z3 Platform Highlights
Designed for high-capacity autonomous transport with precise navigation and intelligent operation across indoor and outdoor environments.
≤1.8 m/s Running Speed ≤2.5 cm Obstacle-Crossing Height ≤ 8° Gradeability <5 mm Navigation Precision

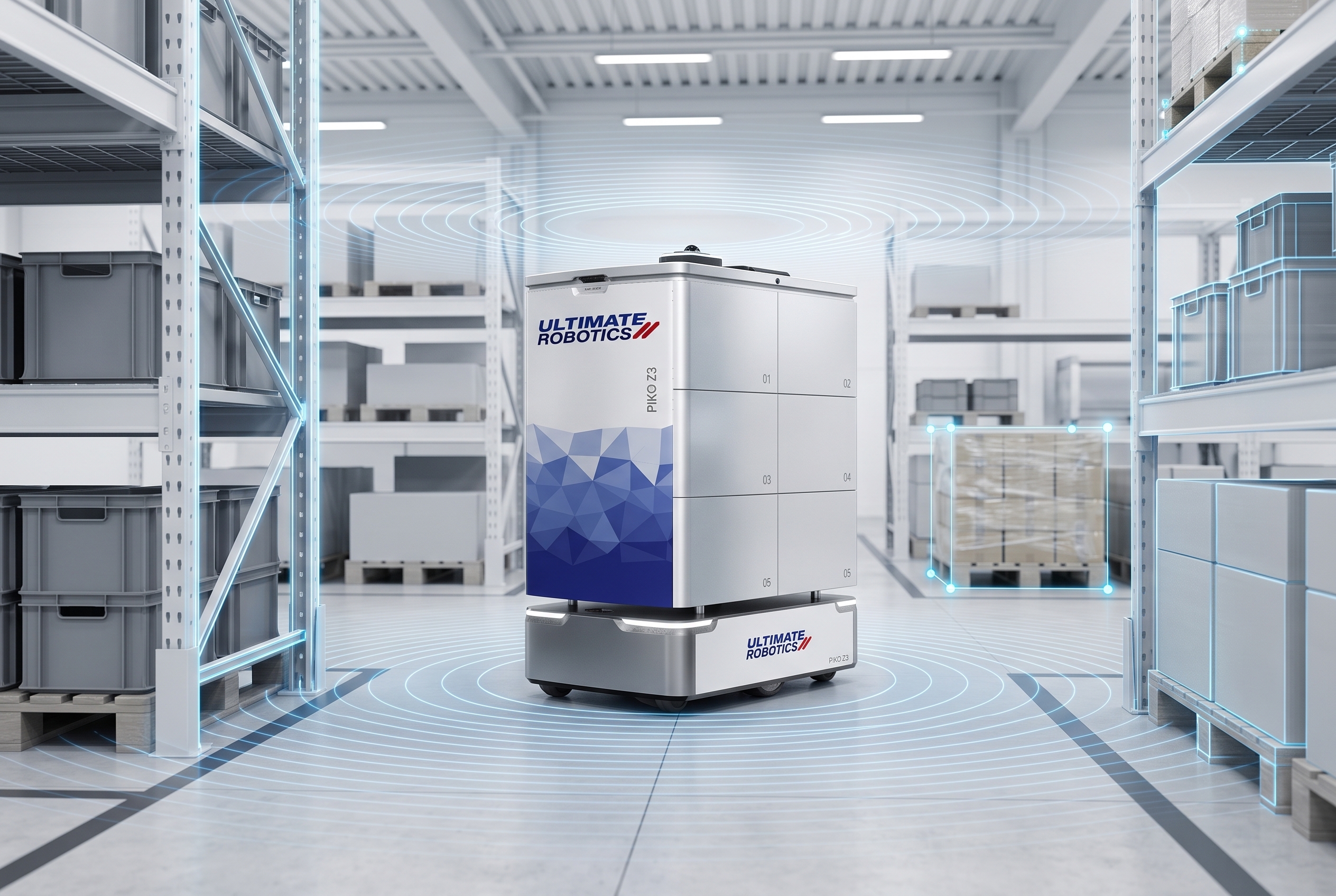

Perception & Autonomy
1x 360° 3D LiDAR 1x 360° 2D LiDAR 8x Ultrasonic Sensors 2x Depth Cameras 3x Color Cameras + 1x Monitoring Camera 1x Fisheye Camera 7x RFID Antennas 1x GNSS 1x IMU, 2x Odometers
Built for Delivery
≤150 kg / 370L total loading capacity Up to 56h standby on full charge Charges 20% -> 98% in 4Hrs
Capabilities
Piko Z3 Core Capabilities
High-Capacity Transport
Supports up to 150 KG maximum load with 6 delivery compartments and a total storage volume of 370 L for large-scale autonomous logistics operations.
Precision Navigation
Combines 360° 3D LiDAR, 360° 2D LiDAR, ultrasonic sensors, depth cameras, GNSS, IMU, and odometry to deliver navigation precision of <5 mm.

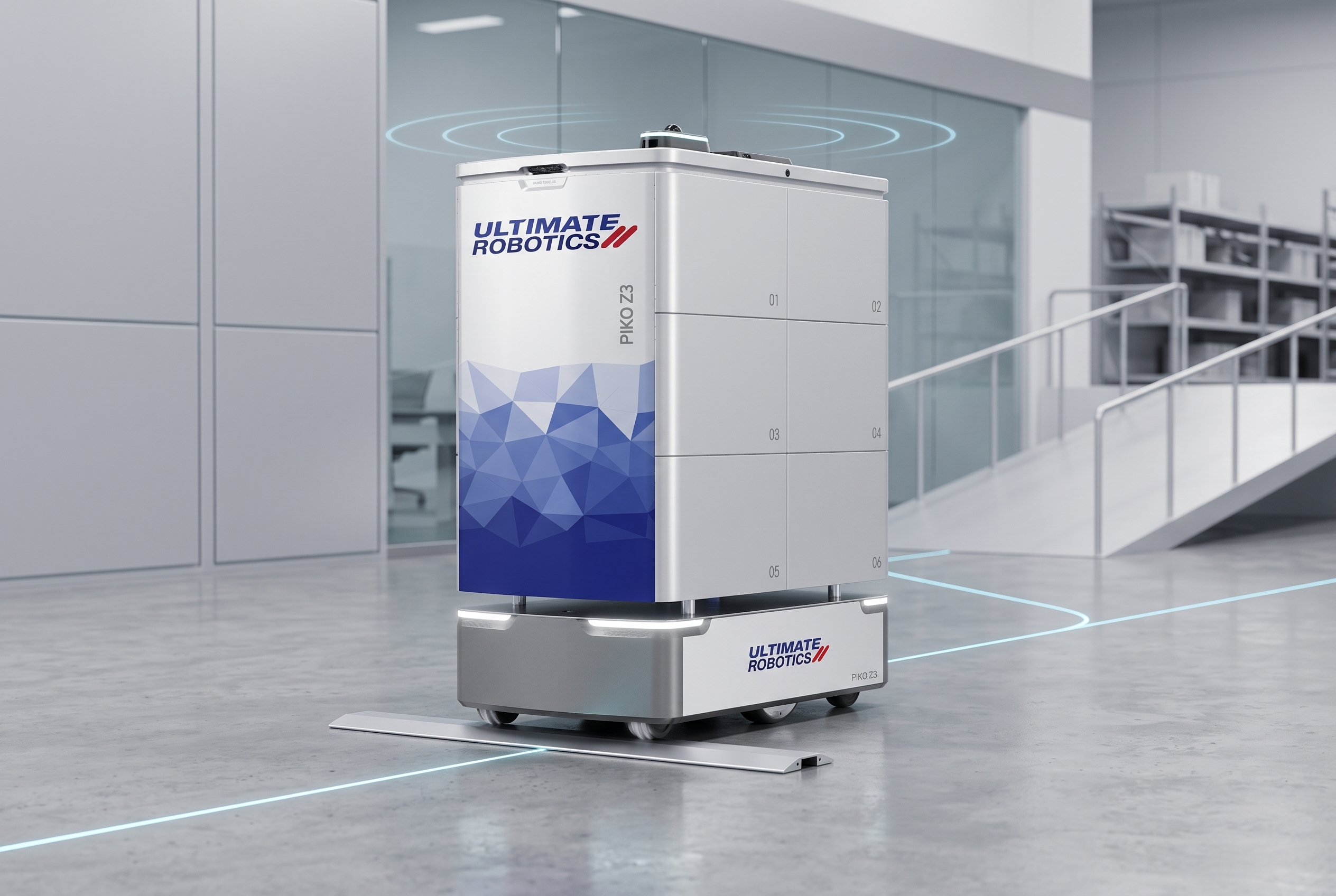

Flexible Mobility
Bidirectional differential drive supports in-place rotation and reversing, with speeds up to 1.8 m/s, gradient climbing up to 15%, and operation through doorways as narrow as 80 cm.
Secure & Connected Operation
Electromagnetic compartment locks, RFID/NFC access, emergency manual opening, backend alerts, and connectivity through Wi-Fi, 4G, and Bluetooth support secure and connected logistics workflows.
Use Cases & Application Scenarios
Autonomous
Bulk Transport

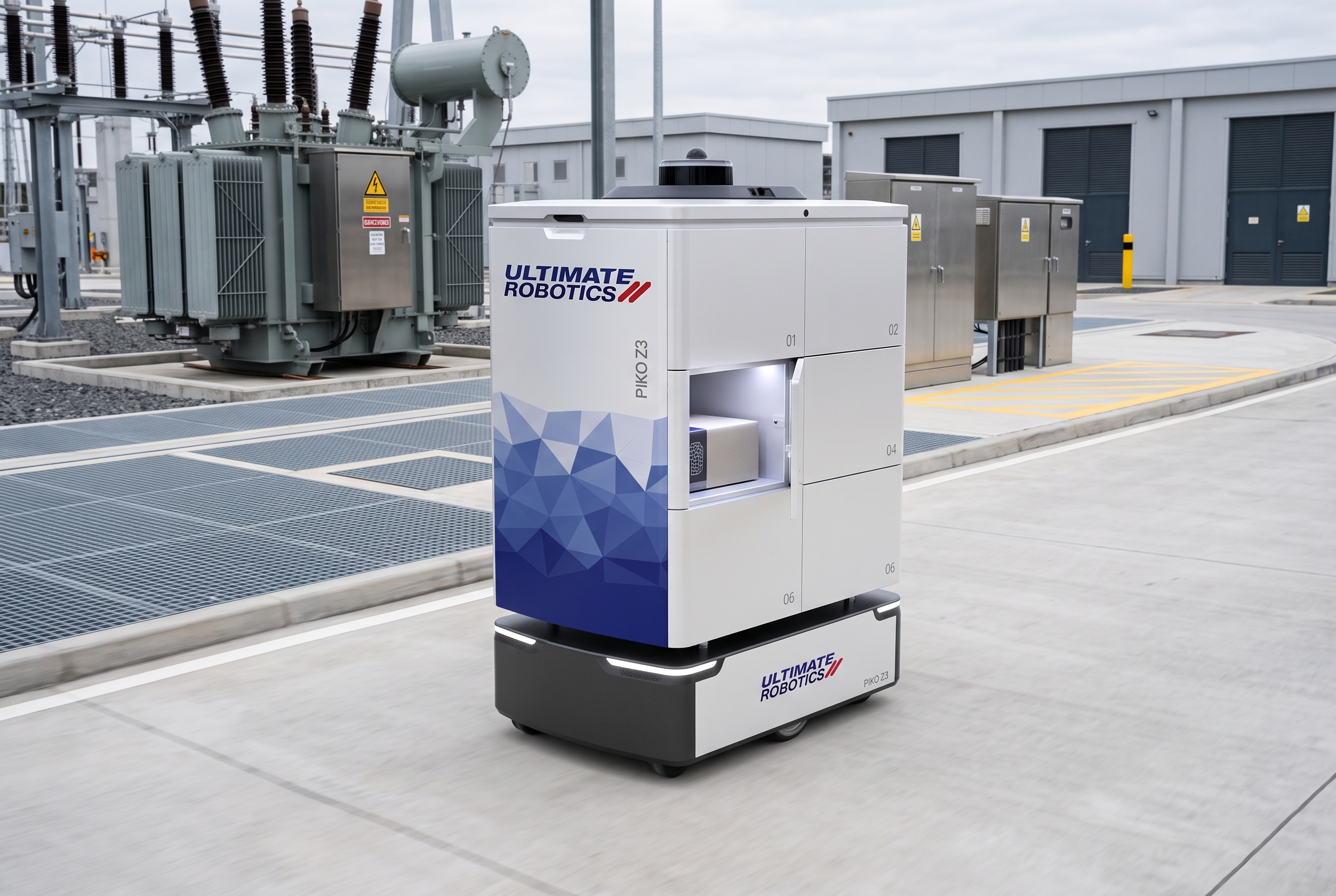

POWER & UTILITY INSPECTION
High-Capacity Multi-Stop Delivery
With 6 independently locked compartments and up to 150kg total load, Piko Z3 consolidates multiple deliveries into a single autonomous run — RFID antennas and a monitoring camera confirm secure handoffs at each stop across offices, campuses, and residential complexes.

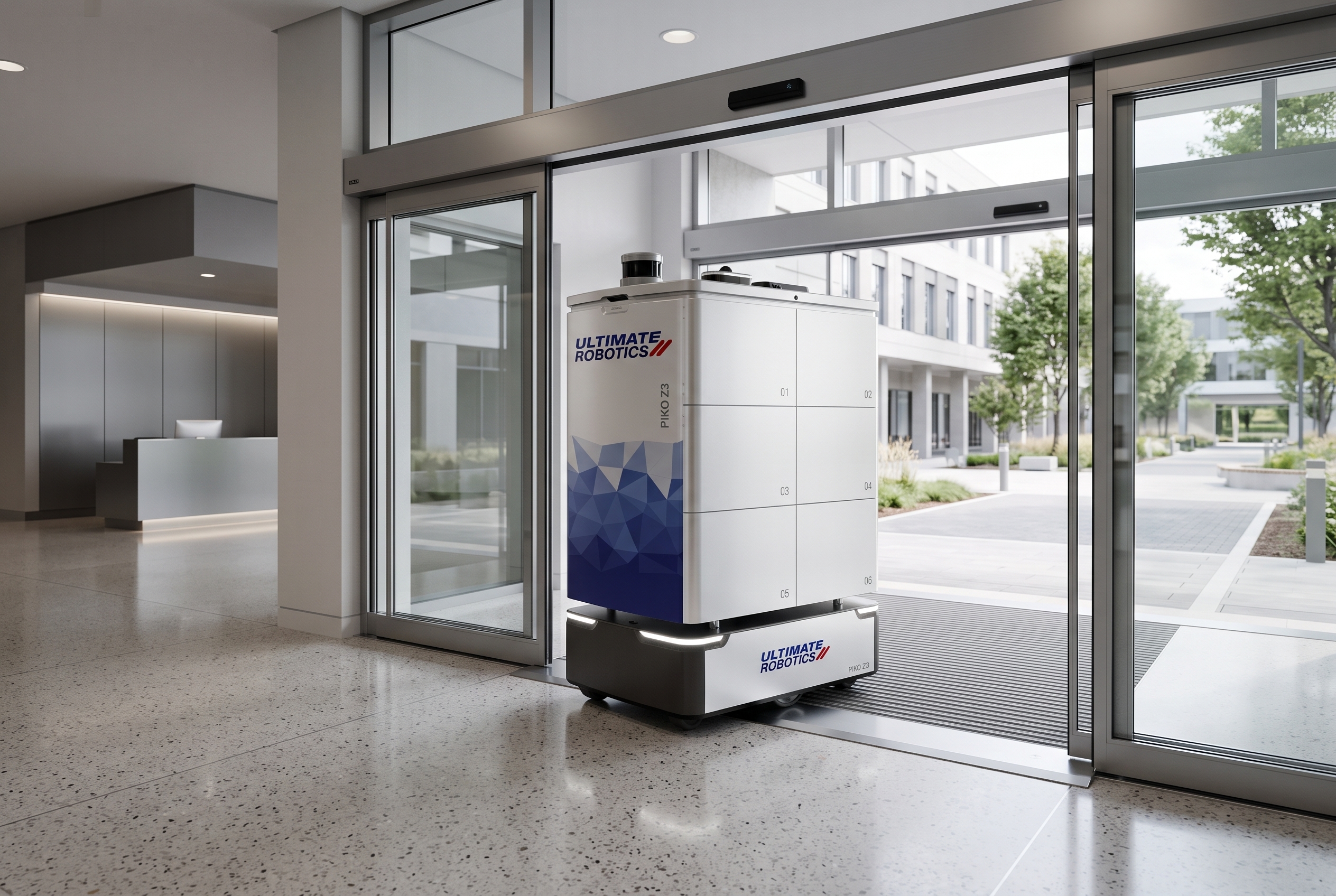

INDOOR-OUTDOOR CAMPUS OPERATIONS
Seamless Indoor-Outdoor Transport
3D/2D LiDAR, GNSS (GPS, Beidou, GLONASS, Galileo), and depth cameras let Piko Z3 navigate corridors, doorways as narrow as 80cm, and outdoor pathways with under-5mm precision — suited for hospital campuses, business parks, and mixed indoor-outdoor facilities.

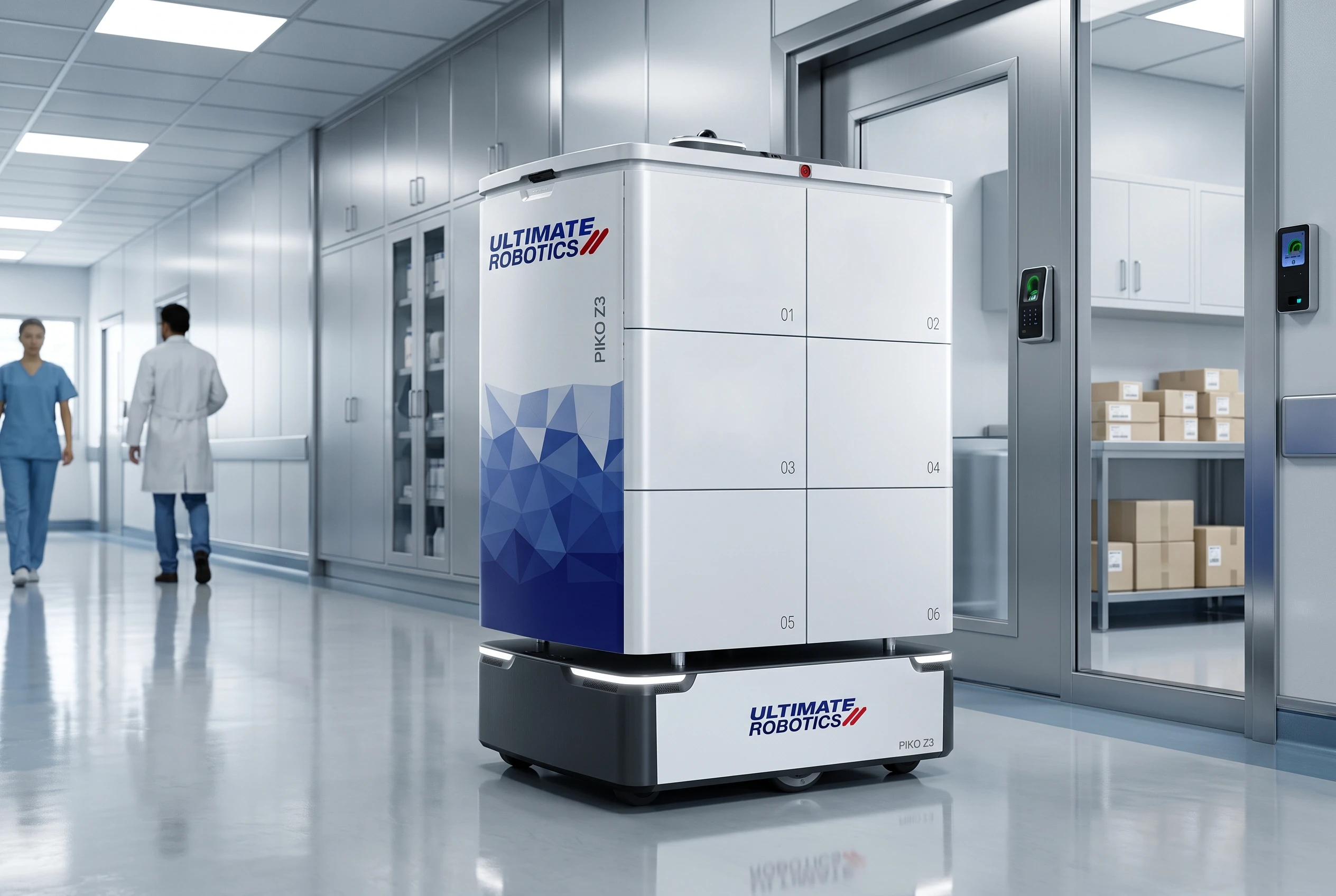

SECURE ASSET & PARCEL TRANSPORT
Secure Asset Transport
Waterproof electromagnetic door locks, an emergency stop switch, and backend alerts for workflow or device abnormalities make Piko Z3 suited for transporting valuables, medical supplies, or sensitive parcels where chain-of-custody and manual emergency access matter.
Get In Touch
Have Question About Our Robots? Reach out to our team.
From 24/7 assistance to preventative maintenance and operator training, our support ecosystem helps keep your robotic solution reliable, relevant, and ready for the long term.
24/7 Support
Covers variety of information with just one number.
High Reliability Support
Preventative and responsive maintenance designed to maximize uptime and reliability.
Stay Up-to-Date
Regular review of robotic payload that stays relevant to use case. Higher level of engineering expertise so product don't become obsolete.
Operator Training
Equip your team with the knowledge and skills to operate your robotic systems safely and effectively.
